LVD introduces configurable robotic bending systems
Published:
New bending automation model emphasises flexibility;
User-defined parameters enable highly tailored bending cells

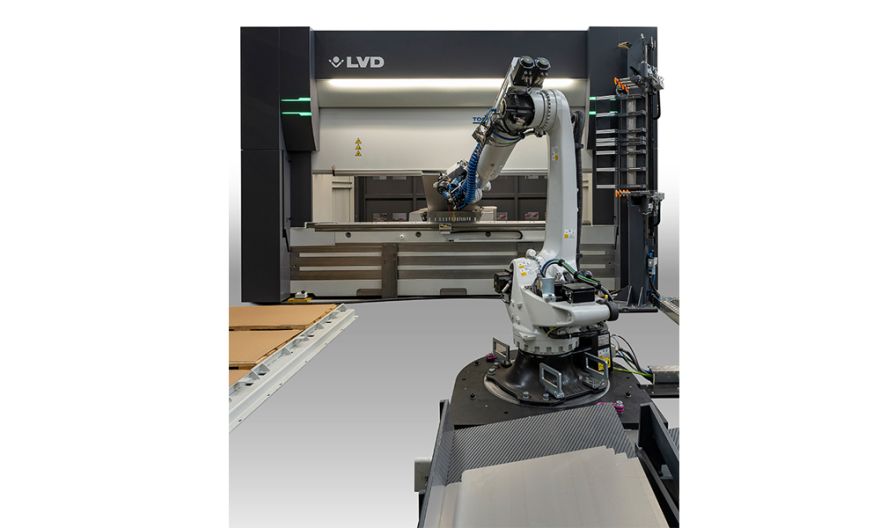

LVD Company nv, a market leader in automated bending solutions for sheet metal fabricators, introduces new Robotic Bending Systems – RBS - in three configurable platforms. These systems form the foundation for fully customised cells, with choice of press brake capacity and functionality, input and output stations and style of robot grippers based on a fabricator’s application needs and production demands. RBS offer the utmost flexibility, ensuring every cell LVD builds is ideally suited for the end user. This makes bending automation more accessible for a wider audience and allows a faster ROI for each system.
TAILORED FUNCTIONALITY
The three core platforms are structured as follows:
- RBS 4 is designedfor parts up to 600 x 400 mm in size and weighing up to 4 kg. The maximum profile length is 600 mm. The system is compatible with press brakes featuring 1500 or 2000 mm working length and 40 or 50 tons of pressing force.
- RBS 40 handles parts up to 1600 x 1200 mm, with a maximum weight of 40 kg. The maximum profile length is 2000 mm. The system is compatible with press brakes featuring 2500 or 3000 mm working length and 80, 135, or 220 tons of pressing force.
- RBS 80is designed for larger parts up to 3050 x 1250 mm, weighing up to 80 kg. The maximum profile length is 3000 mm. This system works with press brakes offering a working length of 3000, 4000, or 4200 mm, and a pressing force of 135 or 220 ton.
The bending cell configuration starts by defining key parameters across five steps. In Step 1, the part dimensions—length, width, and overall size—are specified, as these determine the required robot payload.
The second step is press brake selection, ranging from an electric-drive Dyna-Press to an automatic tool changing ToolCell, depending on complexity of application, quality requirements and production volumes.
The fabricator then defines input source and output method for best material flow choosing input boxes, output pallets, conveyor systems and fences.
The last step is gripper selection based on the weight, material properties, shape, and size of parts to be handled. Gripper choices include LVD’s universal gripper, manual gripper, combination gripper for smaller, magnetic parts, and heavy-duty gripper.
CORE FEATURES FOR RELIABLE, EASY USE
Robotic Bending Systems incorporate core features that ensure reliability and ease of use:
- Touch-B control operates both press brake and robot using intuitive multi-touch technology
- LVD’s CADMAN-SIM software automatically programs both press brake and robot, defining all gripper positions, optimizing the bending sequence for collision-free operation. No robot teaching or programming experience is necessary.
- Easy-Form® Laser adaptive bending system (option) assures bend angle accuracy from the first bend, ensuringconsistent quality in automated production.
- Manual mode option: When automation isn’t needed, the press brake can be used manually.
STRONG PRODUCT SOLUTION FIT
LVD’s Robotic Bending Systems meet the specific automation goals of each customer, whether for short production runs with frequent changeovers or high-volume batches of complex parts. A user-configured bending cell increases process reliability and speeds the return on investment.
“With RBS, we’re taking a truly customer-centric approach ,” says Peter Vandromme, LVD press brake automation sales manager. “Instead of offering off-the-shelf solutions, we configure each cell around the user’s needs - maximizing productivity and efficiency. By making bending automation more flexible, we make it more accessible and ultimately more valuable to our customers.”
In addition to configurable RBS bending systems, LVD continues to offer standardized robotic bending cells: Dyna-Cell, Easy-Cell, and Ulti-Form for the time being.
ABOUT LVD
LVD is a leading manufacturer of sheet metalworking equipment, including laser cutting systems, punch presses, press brakes, robotic bending cells, automatic and semi-automatic panel benders, guillotine shears, and automation systems, integrated to and supported by its CADMAN® software suite. LVD Industry 4.0-ready products and technology make smart manufacturing possible.
