US contract machining company invests in a fourth Starrag machine

Of all businesses, contract machining companies know what they want.

Cincinnati-based firm Metalex Manufacturing Inc already owns three Starrag machine tools, but after extensive benchmarking, the key customer has chosen to invest in a Droop+Rein T portal machining centre from Starrag, its largest investment to date in every respect.

The contract machining company, a specialist in producing sophisticated and high-quality workpieces, was looking to machine materials with flexibility, efficiency and precision, all in a single clamping operation. This was where Starrag’s claim came into play once again. In keeping with the proven philosophy of “engineering precisely what you value”, Metalex and a team from Starrag turned their attention to the entire Starrag portfolio.

The company ultimately decided on the Droop+Rein T series from the Bielefeld site, a powerful milling/turning centre offering an outstanding level of accuracy thanks to its perfectly rigid design and hydrostatic guide concept. Just one look at the extraordinary dimensions (table length: 18,000 mm; horizontal pass: 9,000 mm; vertical pass: 7,000 mm) and the huge working area of 19,000 mm in X, 9,000 mm in Y and 3,000 mm in Z proves it: We are looking at XXL at its finest. The huge amount of space offered by this new model means that processing large workpieces in a single clamping operation is easy. There is also an option for highly flexible 5-axis processing, thanks to the integrated C-axis with stepless rotation and the universal fork-type milling head, featuring a B-axis that swivels ±95°. The sixth-axis in W, a 5,500 mm continuously movable crossbeam, complements the universal approach that the contract machining company required.

The processing centre uses a 100-kW main spindle with a maximum torque of 7,500 Nm, transmitted via vertical and horizontal milling heads, two fork-type milling heads designed for 5-axis operation, as well as a slim outboard bearing for drilling through.

If entirely new orders come in, there is an option to use additional heads for milling, turning, grinding and turning out. The versatile robot magazine, which has space for up to 400 tools, supplies the milling and turning heads with three different tool systems. Integration into Metalex’s production and tool management systems is undertaken by the Integrated Production System (IPS), Starrag’s “building block” for Industrie 4.0 solutions.

The special table construction with two large tables (6,000 x 8,000 mm) ensures very efficient machining. This construction means that one table can be used under the spindle while the other is loaded and unloaded outside the work area. Extra-long workpieces are machined in coupled tandem operation, for which tables are extended to 18,000 mm. Each table also features an integrated rotary table from the Dörries series (diameter: 6,000 mm). Thanks to the two 111-kW main drives, the turning of components weighing up to 200 tonnes is also possible. The rotary table can also be used as a C-axis for precise positioning when milling and drilling.

All in all, Starrag’s solution was exactly what Metalex CEO Kevin Kummerle was looking for. He values healthy growth and continuous development. The new Droop+Rein T portal machining centre plays an important part in this, offering Metalex and its customers impressive long-term benefits in terms of quality, technology, costs and service.

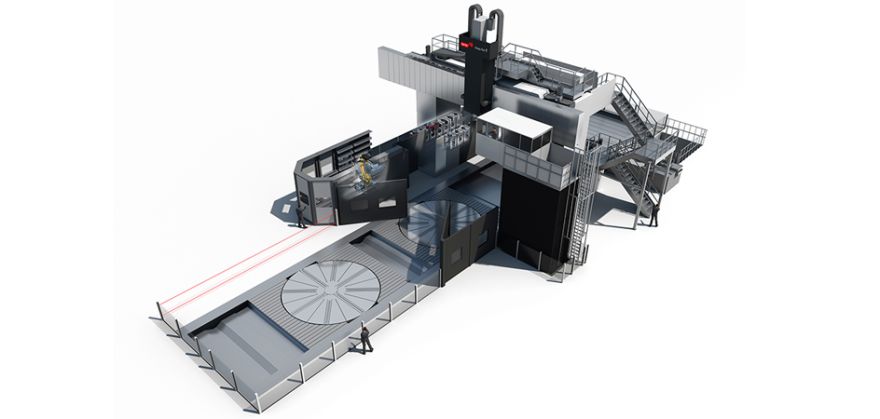

For its investment in the XXL future at its new “Center for Advanced Large Manufacturing”, Metalex, based in Cincinnati, Ohio, ordered a 6-axis portal machining centre from the Droop+Rein T series by Starrag.

Engineering precisely what you value

Starrag Group is a global technology leader in manufacturing high-precision machine tools for milling, turning, boring and grinding workpieces of metallic, composite and ceramic materials. Principle customers are internationally active companies in the Aerospace, Energy, Transportation and Industrial sectors. In addition to its portfolio of machine tools, Starrag Group provides integrated technology and maintenance services that significantly enhance customer productivity.

The products are marketed under the brand Starrag and include the product ranges Berthiez, Bumotec, Dörries, Droop+Rein, Ecospeed, Heckert, Scharmann, SIP, Starrag and TTL. Headquartered in Rorschach/Switzerland, the Starrag Group operates manufacturing plants in Switzerland, Germany, France, the UK and India and has established a network of sales and services subsidiaries in the most important customer countries.

Starrag Group Holding AG is listed on the SIX Swiss Exchange.
